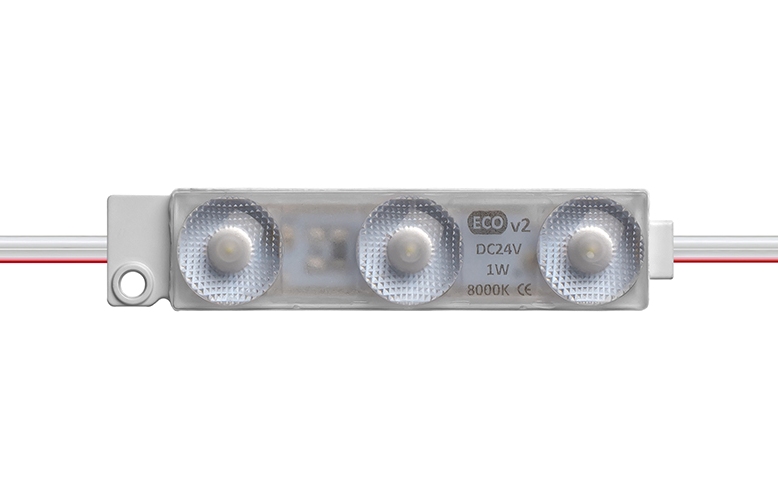

ECO NEW LENS V2
Economic modules with 170° lens
For light boxes with a depth of: 80-200 mm
80-200
mm5 years warranty
5 yearsIP protection 67
IP 67Color temperature: 3000K-8000K
3000K-8000KLight angle: 170°
170°Constant current driver system
See PDF specification:
Select the depth of the light box:
Suitable for this depth:
Dimensions:
Connection diagram:
Note: The maximum number of modules connected in one chain is 50 pcs! When using a larger number of modules, it is necessary to use parallel supply of chains.
| Parameters | Eco Lens v2 |
|---|---|
| Module power/current | 0,72W/60mA 1W/83mA |
| Voltage | 12V/24 |
| Luminous flux | ~72lm => 0.72W/~100lm => 1W |
| Light efficiency | 100 lm/W |
| Illumination angle | 170° |
| Color temperature | Red, Blue, Green, 3000K, 4000K,5000K 6500K , 8000K |
| Operating temperature | -40°C ~ 50 °C |
| Dimensions (length x width x height) | 67.9x13.8x8.5 |
| Module spacing | 155mm |
| Chip type | 2835 |
| Current stabilization | no |
| Degree of protection | IP68 |
| Durability | 30 000h |
| Maximum number of modules in a chain | 50 pcs |
| Warranty | 5 years |
