XBAR 180 STRIP
Strips for very shallow applications from 30mm
For light boxes with a depth of: 30-50 mm
30-50
mm3 years warranty
3 yearsIP protection 20
IP 20Color temperature: 6500K
6500KLighting angle: 180°
180°See PDF specification:
Select the depth of the light box:
Suitable for this depth:
Dimensions:

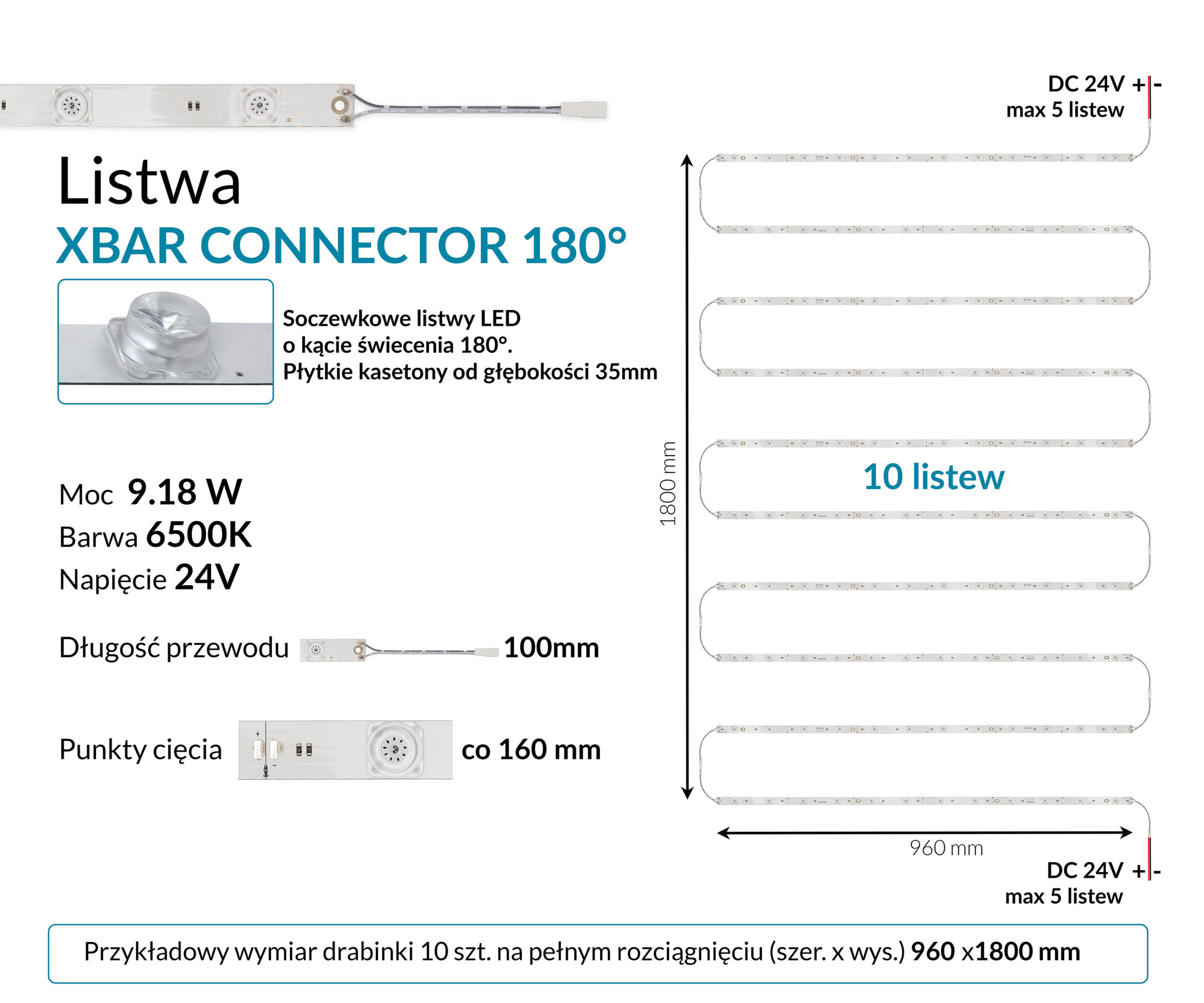

Connection diagram:
| Parameters | Xbar 180 strip |
|---|---|
| Module power/current | 14.4W 12x1.2W/100mA 9.16W - 12x0.76W/63mA 5.4W -12x0.45W/37mA |
| Supply voltage | 12V/24V |
| Luminous flux | 12 x 156 lm 12 x 114 lm 12 x 59 lm |
| Lighting efficiency | 130 lm/W |
| Illumination angle | 180° |
| Color temperature | 6500K |
| Operating temperature | -25°C ~ 60 °C |
| Dimensions (length x width x height) | 960x18x1 [mm] |
| Module spacing | 80mm |
| Chip type | 2835 |
| Current stabilization | none |
| IP protection | IP20 |
| Durability | 50 000h |
| Connection method | 10 bars |
| Warranty | 3 years |
Downloadable:
Connection diagram:
